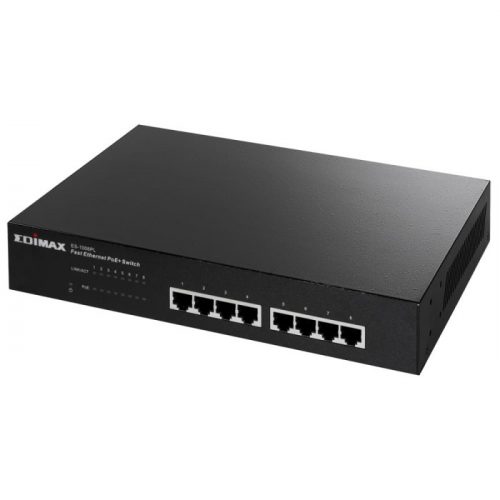

EDIMAX ES-1008PL 8-Port Fast Ethernet PoE+ Switch

STANDARDS FEATURES FILTERING & FORWARDING RATES •IEEE 802.3 10BASE-T •IEEE 802.3u 100BASE-TX •IEEE 802.3af/802.3at PoE •IEEE 802.3x Flow Control •IEEE 802.3az Energy Efficient Ethernet •RJ-45 Ports: 8 •PoE Ports: 8 •MAC Address: 1K •Buffer Memory: 96K •Transmission Method: Store and Forward •100Mbps Port – 148,800pps •10Mbps Port – 14,880pps TRANSMISSION MEDIA LED INDICATORS POWER REQUIREMENTS •10BASE-T Cat. 3, 4, 5 UTP/STP •100BASE-TX Cat. 5 UTP/STP •Power: Green LED •LNK/ACT: Green LED (Port 1 – Port 8) •PoE: Green LED (Port 1 – Port 4) •100 to 240V AC, 50/60Hz •Consumes 5 Watts (Max. no PD connected) POWER BUDGET TEMPERATURE HUMIDITY…
