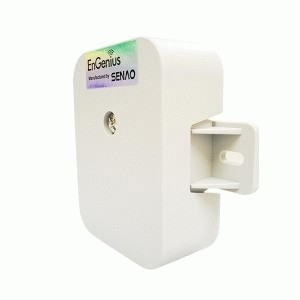

The Lightning Protector provides superior lightning and surge protection for both indoor and outdoor 10/100 Base-T networks. The unit meets or exceeds CAT5e performance for the two data pairs. In addition, the unit is compatible with 802.3af Power-over-Ethernet (PoE) devices. Integral to the design is protection for the two Ethernet data pairs and the PoE DC power feed. This unit supports normal and reverse polarity PoE
10/100 Base-T CAT5 protection.
Convenient and integral mounting.
802.3af Power-over-Ethernet (PoE) Compatible
DC spark-over voltage 75V +-25%
Impulse spark-over voltage at 100V/us <=500V at 1kV/us <=600V
PRODUCT ID & COSMETIC
Two arc type mechanical design for mounting
Dimension: 130 x 78 x 50mm
Operation temperature: -20C~ +60C
Storage temperature: -40C~ +85C
Humidity: 5% ~ 95% typical
