HP JH019A

Deskripsi

Deskripsi Produk

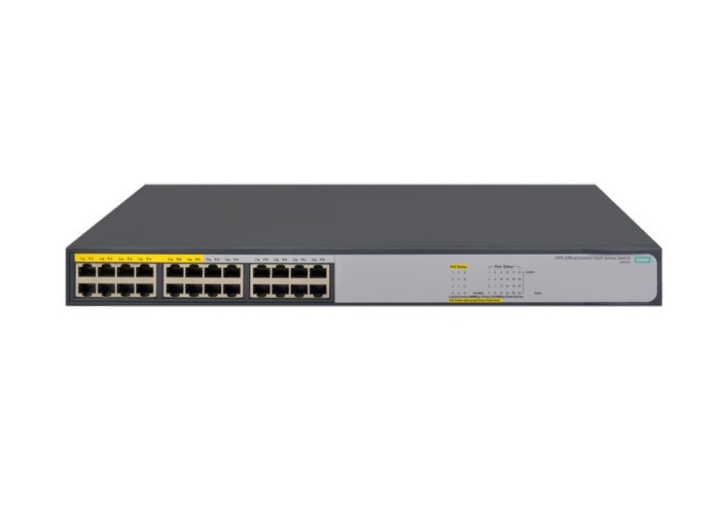

The HPE OfficeConnect 1420 Switch Series consists of unmanaged Gigabit Ethernet switches, for small businesses connectivity for their network, including low-cost PoE+ and 10-Gigabit uplink models. There is a 24-port model with two SFP Gigabit ports, ideal where long distances require fiber-based connections. Another 24-port model supports IEEE 802.3at PoE+ on 12 of its ports, able to forward up to 30 W power on these ports to power access points, IP phones, IP cameras, and other PoE-enabled devices. For cost-effective high-speed fiber-based server connections, there is a 24-port 10/100/1000 switch with two SFP+ 10-Gigabit ports. Lastly, there is a model simply with a 24-port 10/100/1000 layout.

Memori dan prosesor 1 MB flash

Packet buffer size: 512 KB

IO Port : 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u

Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only Supports a maximum of 24 autosensing 10/100/1000 ports

Performance

100 Mb Latency : < 8 µs (LIFO 64-byte packets)

1000 Mb Latency : < 16 µs (LIFO 64-byte packets)

Throughput : Up to 38.7 Mpps (64-byte packets)

Switching capacity : 52 Gbps

MAC address table size : 8192 entries

Electrical characteristics

Frequency : 50/60 Hz

Voltage : 100–240 VAC, rated

Current : 0.3 A (without PoE)/1.81 A (with full PoE power)

Maximum power rating : 18 W (without PoE)/160 W (with full PoE power)

PoE power : 124 W PoE+

Notes : Maximum power rating is the worst-case theoretical

maximum number provided for planning the

infrastructure with fully loaded PoE (if equipped), 100%

traffic, all ports plugged in, and all modules populated.

PoE power is the power budget available for Power
