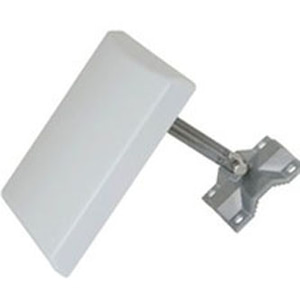

MIKROTIK AODM24-12 PATCH ANTENNA INDOOR 12 DBI 2,4 GHZ

Rp590.000

Antenna Indoor flat panel 12 dbi 2,4 GHz. Cocok untuk aplikasi hotspot indoor. Termasuk kabel jumper N-Male to N-male 1 meter.

Electrical Specifications

Frequency 2400-2500 MHz
Gain ( dBi ) 12 dBi
Polarization Vertical or Horizontal
Vertical Beamwidth 34
Horizontal Beamwidth 65
Max. Input Power 200W
Impedance 50 Ohms
VSWR 1.5:1
Lightning Protection DC Ground

Mechanical Specifications

Output Connector Integral N-Female
Mounting 1″ (25.4 mm) to 1.7″ (43.2 mm) dia. masts
Vertical Tilt 0-30 Up or Down
Radome UV-Inhibited ABS
Operating Temperature -40 C to to 55 C
Dimensions 102 x 102 x 102 mm
Weight – Antenna 0.6 lbs. (0.27 Kg)
Weight – Mount 0.4 lbs. (0.18 Kg)
Rated Wind Velocity 150MPH/h (241Km/h)
RoHS Compliant Yes
