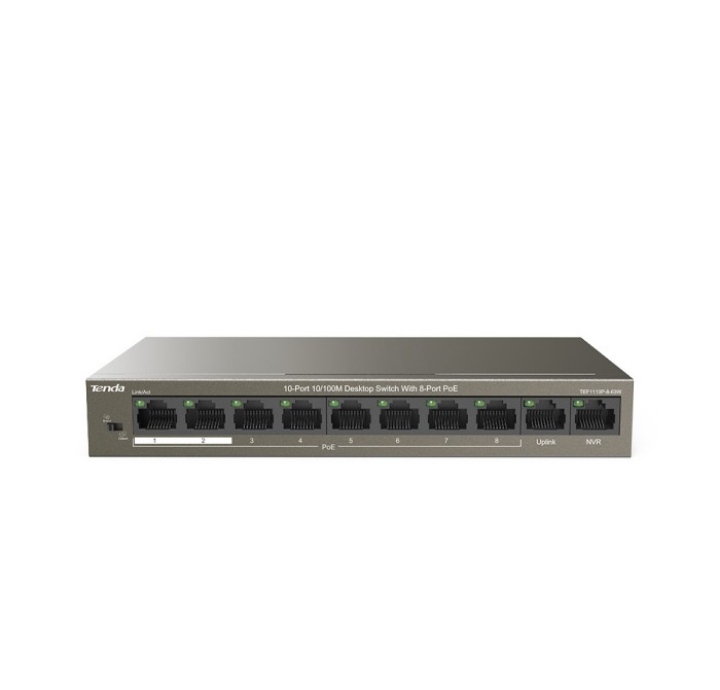

TEnda TEF1110P-8-63W 10-Port 10/100M Desktop with 8-Port PoE Switch

Name: TEnda TEF1110P-8-63W 10-Port 10/100M Desktop with 8-Port PoE Switch
SKU: TEF1110P-8-63W
Availability: InStock

Rp700.000

HardwareNetwork standardsIEEE 802.3/3u/3x, IEEE 802.3af/atLED Indicator10* Link/Ack LED indicators1 * Power LED indicatorInterfaces8 * 10/100 Base-TX Ethernet ports (Data/Power)2 * 10/100 Base-TX Ethernet ports (Data)Transmission mediaRecommended: CAT5/5e UTP or betterFan quantityN/ADimension177.5mmx104.0mmx26.0mmLevel of protectionLightning protection for ports: 6KVLightning protection for power: 4KVESD:Air discharge: ±10kVContact discharge: ±8kVForwarding modeStore-and-forwardSwitch capacity1.6 GbpsPacket forwarding rate1.48MppsBuffer448KMAC address table1KJombo frameN/APoE budgetSingle port: AF: 15.4W, AT: 30WWhole device: 58WPower consumption/Input voltage100－240V AC 50/60Hz51V /1.25A DC（Power Adapter ）MountingDesktop mounting: supportWall mounting: supportRack mounting:non-supportEnvironmentOperating Temperature: 0℃~45℃Storage Temperature: -40℃~70℃Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensingCertificationFCC、CE、RoHSSoftwareFuntionsDefault Mode: If Default mode is enabled, the device works as a general switch and all ports…

SKU: TEF1110P-8-63W

Category: ASUS Product

Deskripsi

Hardware
Network standards
IEEE 802.3/3u/3x, IEEE 802.3af/at
LED Indicator
10* Link/Ack LED indicators
1 * Power LED indicator
Interfaces
8 * 10/100 Base-TX Ethernet ports (Data/Power)
2 * 10/100 Base-TX Ethernet ports (Data)
Transmission media
Recommended: CAT5/5e UTP or better
Fan quantity
N/A
Dimension
177.5mmx104.0mmx26.0mm
Level of protection
Lightning protection for ports: 6KV
Lightning protection for power: 4KV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Switch capacity
1.6 Gbps
Packet forwarding rate
1.48Mpps
Buffer
448K
MAC address table
1K
Jombo frame
N/A
PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 58W
Power consumption
/
Input voltage
100－240V AC 50/60Hz
51V /1.25A DC（Power Adapter ）
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Environment
Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification
FCC、CE、RoHS
Software
Funtions
Default Mode: If Default mode is enabled, the device works as a general switch and all ports support 10/100Mbps auto-negotiation.
Extend Mode:VLAN isolation is enabled. Port 1-8 will be isolated respectively (10/100Mbps auto-negotiation), but can communicate with the Uplink port. And the delivery distance of powering and network data is up to 250m (10Mbps).
