HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, 802.1p
Interface 8 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 4.08W (220V/50Hz)
Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)
PERFORMANCE
Switching Capacity 16Gbps
Packet Forwarding Rate 11.9Mpps
MAC Address Table 4K
Jumbo Frame 16KB
Transfer Method Store-and-Forward
SOFTWARE FEATURES
Advanced Features MAC address auto-learning and auto-aging
IEEE802.3x Flow control

802.1p/DSCP QoS
OTHERS
Certification FCC, CE, RoHS

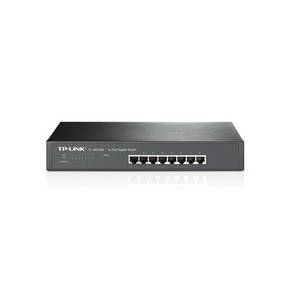

Package Contents 8-Port Gigabit Desktop Switch
Power Cord
Installation Guide
Rackmount kit
Rubber Feet
Environment Operating Temperature: 0~40 (32~104);
Storage Temperature: -40~70 (-40~158);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
