Product Includes:

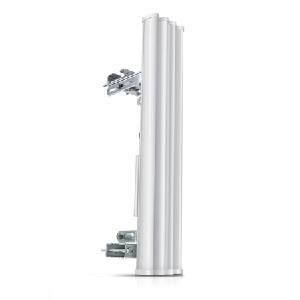

Sector Antenna
Antenna Bracket with the Rocket Fast Mount (for the Airmax BaseStation Model only)
Pole Brackets, bolts, washers and nuts
RF Jumper Cables (weatherproof)

A World Class Antenna Design
Patent-pending next-generation technology achieves gain, cross-polarity isolation, and beam-shaping characteristic only the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2×2 MIMO PtMP BaseStation. Mounting (for the Rocket) and weatherproof RF jumpers included.

AirMax BaseStation Sector Antennas and Rocket M5’s have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

Product Specifications:
Frequency Range: 5.15-5.85 GHz
Gain: 18.6-19.1dBi
Polarization: Dual Linear
Cross-pol Isolation: 28dB min
Max VSWR: 1.5:1
Hpol Beamwidth (6dB): 123 deg.
Vpol Beamwidth (6dB): 123 deg.
Elevation Beamwidth: 4 deg.
Electrical Downtilt: 2 deg.
ETSI Specification: EN 302 326 DN2
Dimensions: 27.6×5.7×3.1in (700x145x79mm) diameter
Weight: 13.0lbs (5.9kg)
Windloading: 160 mph
