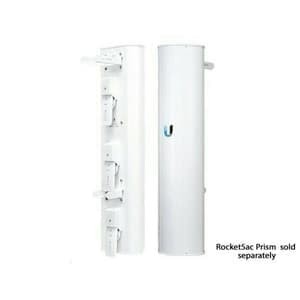

AP-5AC-90-HD Specifications
Antenna Characteristics
Dimensions* 322.6 x 201.5 x 1300 mm
(12.7 x 7.93 x 51.18″)
Weight** 13.1 kg
(28.9 lb)
Frequency Range 5.15 – 5.85 GHz
Gain 22 dBi
HPOL Beamwidth 3 x 30 (6 dB)
VPOL Beamwidth 3 x 30 (6 dB)
Electrical Beamwidth 8
Electrical Downtilt 2
Max. VSWR 1.75:1
Polarization Dual-Linear
Cross-Polarization Isolation 30 dB Min.
Interfaces (6) RP-SMA Connectors (Weatherproof )
Compatible Radio Rocket5ac Prism, model R5AC-PRISM
Wind Loading 534 N @ 200 km/h (120 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
Mounting Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
ETSI Specification EN 302 326 DN2
Certifications CE, FCC, IC
