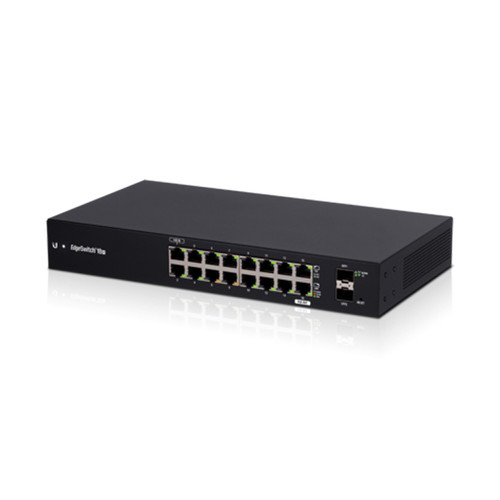

Affordable, fanless WISP switch with (16) Gigabit RJ45 ports and (2) SFP ports.
Ideal for larger-scale WISP applications, the EdgeSwitch® 18X is an affordable high-performance switch with SFP ports and a fanless design. Sixteen Gigabit RJ45 ports offer copper connectivity with PoE input on port 1 and PoE passthrough on port 16. Two SFP ports offer fiber connectivity. The browser-based configuration interface offers intuitive control. Management is also available through UISP.
Features:
(16) Gigabit RJ45 ports
(2) SFP ports
Supports PoE passthrough on port 16 (software-selectable)
Powered by 24V passive PoE or external 24V AC/DC adapter
Wall or rack-mountable (bracket included)
Mechanical
Dimensions
299.8 x 160 x 43.7 mm (11.8 x 6.3 x 1.7″)
Weight
Without Mount: 1.15 kg (2.54 lb)
With Mount: 1.43 kg (3.15 lb)
Enclosure Material
Metal
Mount Material
Metal
Hardware
Total Non-Blocking Throughput
18 Gbps
Switching Capacity
36 Gbps
Forwarding Rate
26.78 Mpps
Max. Power Consumption
14W (Excludes PoE Output)
ESD/EMP Protection
Air: ± 16 kV, Contact: ± 8 kV
Power Method
External AC/DC Adapter
24V Passive PoE
Power Supply
24VDC, 1.0A Power Adapter (Included)
24V Passive PoE
Supported Voltage Range
9 – 30VDC
Networking Interfaces
(16) 10/100/1000 Mbps Ethernet RJ45 Ports
(2) 1 Gbps SFP Ports

PoE Interfaces
(1) 24V Passive PoE Port (Pins 4, 5+; 7, 8-)
Management Interface
Ethernet In-Band
Passive PoE Max Wattage per Port
15W
Passive PoE Voltage Range
24V
Operating Temperature
-10 to 50° C (14 to 122° F)
Operating Humidity
10 – 90% Noncondensing
Certifications
CE, FCC, IC
