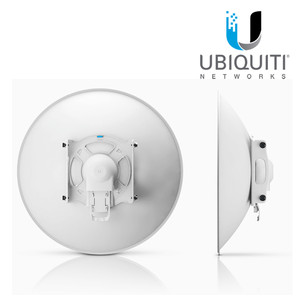

RD-5G30-LW
Frequency : 5 GHz
Gain : 30 dBi

* The RD-5G30-LW features the same gain as the RD-5G30 and adds the following advantages:
. Lightweight yet robust components lessen the load.
. The extended depth of the dish reflector rejects noise interference in co-location deployments.
. The design of the mounting bracket allows for ease of installation on a pole or tower.

Frequency Range : 5.1 – 5.9 GHz
HPOL Beamwidth : 5.8 (3 dB)
VPOL Beamwidth : 5.8 (3 dB)
F/B Ratio : 30 dB
Max. VSWR : 1.6:1
Wind Loading : 790 N @ 200 km/h (178 lbf @ 125 mph)
Wind Survivability : 200 km/h (125 mph)
Polarization : Dual-Linear
Cross-pol Isolation : 35 dB Min.
Mounting : Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included

Compatible Radio : Rocket 5ac PtP, Rocket5ac Lite, RocketM5 Titanium, or RocketM5
