Deskripsi :

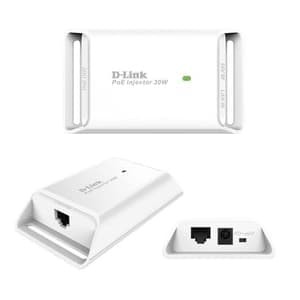

The IEEE 802.3at (PoE+)/802.3af (PoE) compliant DPE-301GI Gigabit PoE+
Injector is designed to supply data and up to 30 watts of power to
PoE-enabled devices such as network cameras and wireless access points.
Extend Your Existing Wireless Network
The IEEE 802.3at (PoE+)/802.3af (PoE) compliant DPE-301GI Gigabit PoE+
Injector is designed to supply data and up to 30 watts of power to
PoE-enabled devices such as network cameras and wireless access points.

The DPE-301GI gives you the ability to mount your PoE device virtually
anywhere in a building, such as on ceilings or near entryways, by
eliminating the need for a nearby power outlet.

D-Link’s DPE-301GI combines electrical power with a Gigabit network
connection to produce a Gigabit Power over Ethernet (PoE) signal for
transmission over a single Ethernet cable, to up to 100 metres1 distance.

Ports
PoE + Data Port (out)

Supports half/full-duplex operation
10/100/1000BASE-T port
IEEE 802.3 compliant
IEEE 802.3u compliant
IEEE 802.3at compliant
IEEE 802.3af compliant
IEEE 802.3ab compliant
Data Port (in)

Supports half/full-duplex operation
IEEE 802.3 compliant
IEEE 802.3u compliant
IEEE 802.3ab compliant
10/100/1000BASE-T port
LED Indicators

Blue: Power On
Green: Link On
Physical

Dimensions (L x W x H)

109.8 x 62.2 x 24.5 mm

Weight
65 grams

Power Adapter: 55 V / 0.6 A
Max Consumption: 32.4 watts
Output: 0.6 A at 55 V
